Universal Extension Impact Socket

  • ANSI or DIN
  • 6P socket
  • Tien-i Impact Socket made from forged and heat treated Chrome Molybdenum Steel (CR-MO SCM440), fully impact grade, to withstand high torque from air-powered impact drivers.
  • Manganese Black Phosphate coating to ensure rust & corrosion resistance in rough environments. Corrosion-resistant black phosphate finish (Manganese)
  • Meets or exceeds ANSI & DIN & ISO performance standards
  • Designed to tackle the toughest jobs with solid durability.
  • Tien-i Patnent

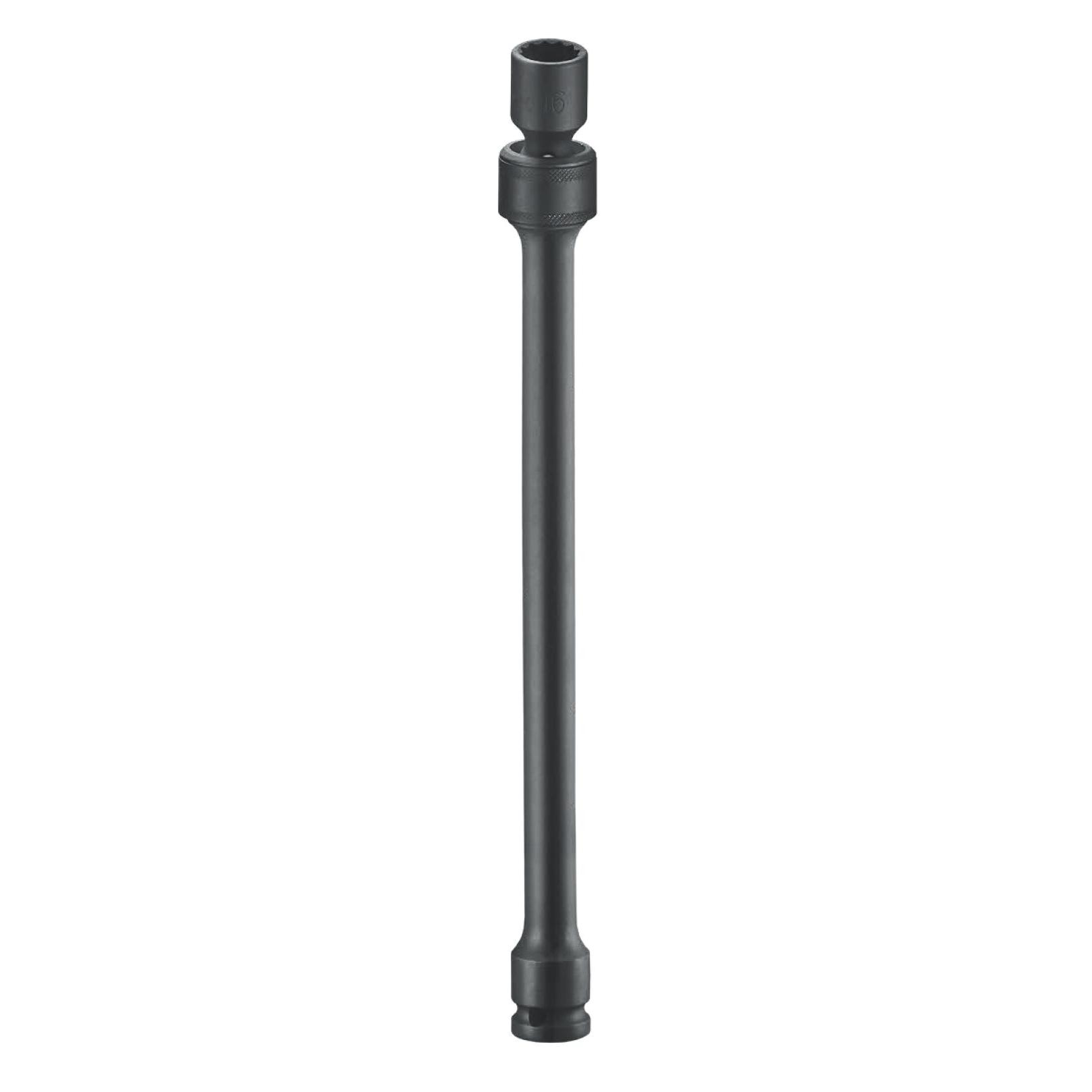

3/8"DR. 6PT Universal Extension Impact Socket (CR-MO)

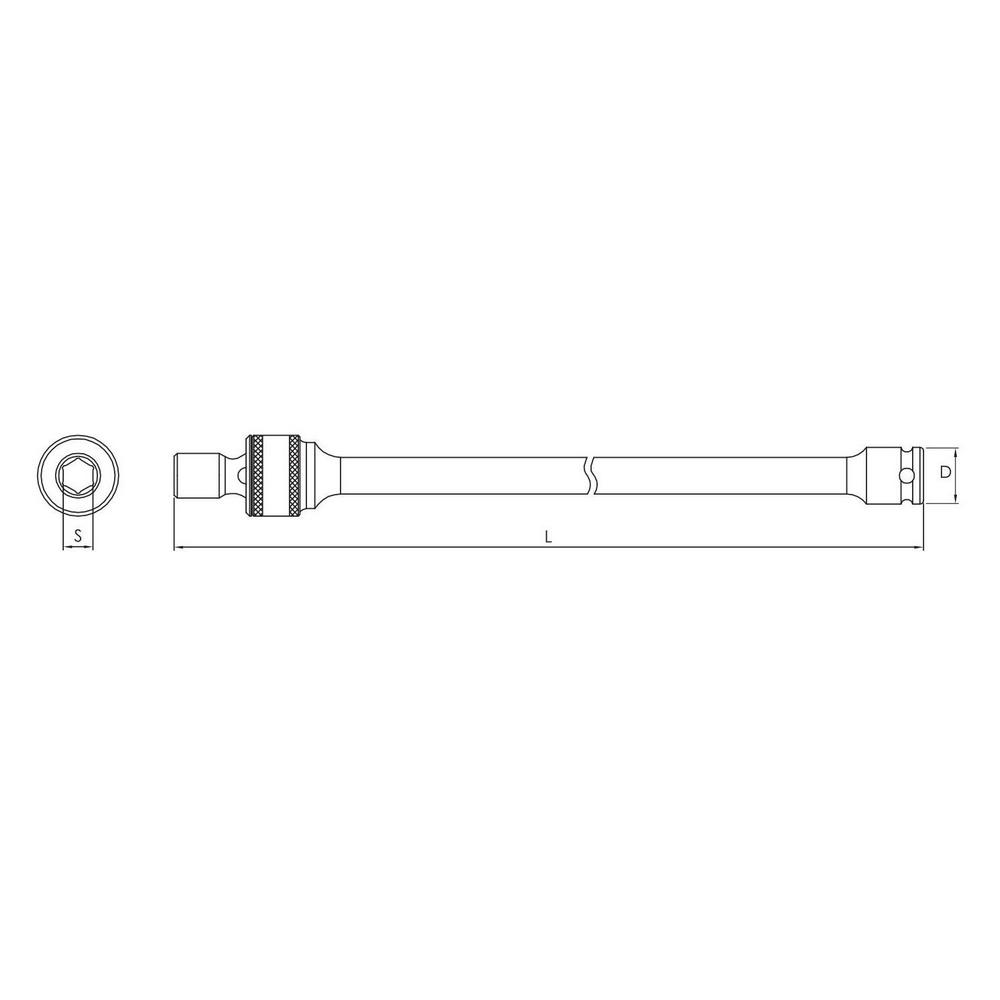

Item No. S L (mm) D (mm) (g)
CIXRTB15036208 8 150 22
CIXRTB15036209 9 150 22
CIXRTB15036210 10 150 22
CIXRTB15036211 11 150 22
CIXRTB15036212 12 150 22
CIXRTB15036213 13 150 22
CIXRTB15036214 14 150 22
CIXRTB15036215 15 150 22
CIXRTB20036208 8 200 22
CIXRTB20036209 9 200 22
CIXRTB20036210 10 200 22
CIXRTB20036211 11 200 22
CIXRTB20036212 12 200 22
CIXRTB20036213 13 200 22
CIXRTB20036214 14 200 22
CIXRTB20036215 15 200 22
CIXRTB25036208 8 250 22
CIXRTB25036209 9 250 22
CIXRTB25036210 10 250 22
CIXRTB25036211 11 250 22
CIXRTB25036212 12 250 22
CIXRTB25036213 13 250 22
CIXRTB25036214 14 250 22
CIXRTB25036215 15 250 22

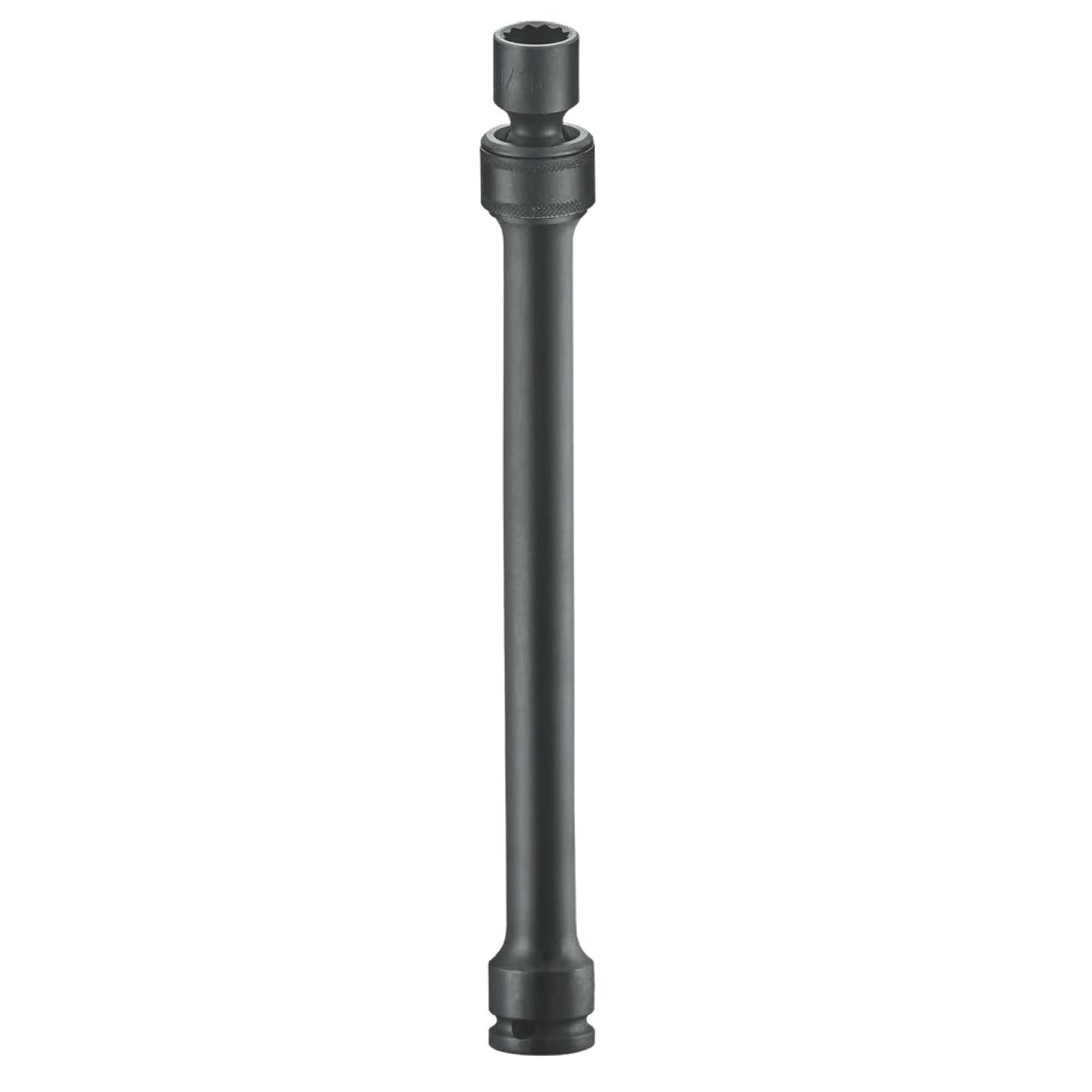

1/2"DR. 6PT Universal Extension Impact Socket (CR-MO)

Item No. S L (mm) D (mm) (g)
CIXRTB15046208 8 150 25
CIXRTB15046209 9 150 25
CIXRTB15046210 10 150 25
CIXRTB15046211 11 150 25
CIXRTB15046212 12 150 25
CIXRTB15046213 13 150 25
CIXRTB15046214 14 150 25
CIXRTB15046215 15 150 25
CIXRTB20046208 8 200 25
CIXRTB20046209 9 200 25
CIXRTB20046210 10 200 25
CIXRTB20046211 11 200 25
CIXRTB20046212 12 200 25
CIXRTB20046213 13 200 25
CIXRTB20046214 14 200 25
CIXRTB20046215 15 200 25
CIXRTB25046208 8 250 25
CIXRTB25046209 9 250 25
CIXRTB25046210 10 250 25
CIXRTB25046211 11 250 25
CIXRTB25046212 12 250 25
CIXRTB25046213 13 250 25
CIXRTB25046214 14 250 25
CIXRTB25046215 15 250 25
Product Detail
High Torque Strength

High Torque Strength

Meets at least 1.2 times the ANSI test torque standard. Verified by a single cycle test in which torque is applied up to a specified value without failure or permanent deformation.

Standard

Standard

Each member of our quality control team has undergone SGS training to ensure that every Tlen-I product satisfies DIN, ISO and ANSI/ASTM international standards. Seeing is believing. We would like to invite you to visit our factory and meet our quality control team.

Laser & Stamped Marking
Laser & Stamped Marking

Marked with the size in 2 way - visible laser mark and permanent stamp mark.

Fully Stepped Shoulders
Fully Stepped Shoulders

Fully stepped shoulders allows better access to tight cavities.

Full-Length Socket Well
Full-Length Socket Well

The inner shaft extends well into the base for better fastener engagement.

Material Quality
Material Quality

Tien-I is a member of China Steel Corporation (CSC), the leading steel company in Taiwan.
