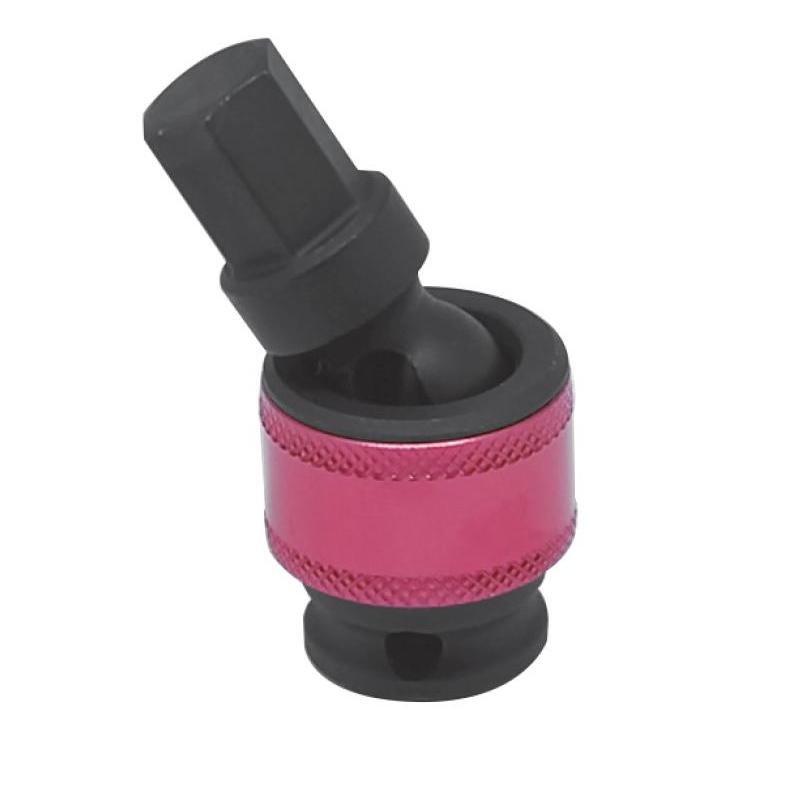

1/2"Dr. Universal Hex Bit Impact Socket

  • ANSI or DIN
  • Color rings aid in socket categorization by size.
  • Swivel impact socket has 30-degree angle and rotates 360 degrees, allowing for access to tight spots.
  • Joint design increases strength and durability for high torque.
  • Full 360-degree rotation with spring-loaded ball bearing design ensures firm and secure grip.
  • Designed for use with battery, electric and pneumatic impact wrenches

  • Tien-i Impact Socket Made in Taiwan, from forged and heat treated CHROME MOLYBDENUM STEEL (CR-MO) with a corrosion-resistant black phosphate finish (MANGANIC PHOSPHATE FINISH)
  • Tien-i Impact Socket with High-torque, 6-point socket design grips the flat sides of fasteners, not just the corners, preventing round-off
  • Complete Sizes for SAE and Metric system
  • High-contrast permanent laser etched size markings are easy-to-read, even in low light
  • Tien-i Impact Socket meets or exceeds ANSI & DIN & ISO performance standards
    To know more: Differences between DIN and ANSI Specifications for Impact Sockets



INQUIRY NOW

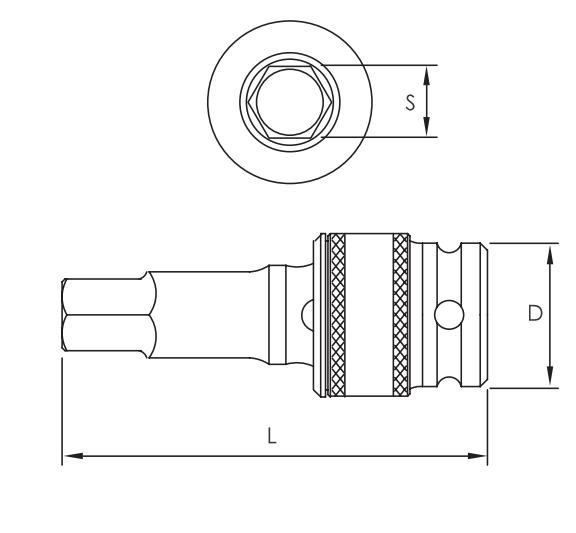

Spec Size Chart
Download All Spec Size Chart

1/2"Dr. Universal Hex Bit Impact Socket (inch)

Item No. S L (mm) D (mm) (g)
IUJBH46108 1/4" 75 28
IUJBH46110 5/16" 75 28
IUJBH46112 3/8" 75 28
IUJBH46114 7/16" 75 28
IUJBH46116 1/2" 75 28
IUJBH46118 9/16" 75 28
IUJBH46120 5/8" 75 28
IUJBH46124 3/4" 75 28

1/2"Dr. Universal Hex Bit Impact Socket (mm)

Item No. S L (mm) D (mm) (g)
IUJBH46206 6 75 28
IUJBH46208 8 75 28
IUJBH46210 10 75 28
IUJBH46212 12 75 28
IUJBH46214 14 75 28
IUJBH46215 15 75 28
IUJBH46217 17 75 28
IUJBH46218 18 75 28
IUJBH46219 19 75 28
Product Detail
High Torque Strength

High Torque Strength

Meets at least 1.2 times the ANSI test torque standard. Verified by a single cycle test in which torque is applied up to a specified value without failure or permanent deformation.

Standard

Standard

Each member of our quality control team has undergone SGS training to ensure that every Tlen-I product satisfies DIN, ISO and ANSI/ASTM international standards. Seeing is believing. We would like to invite you to visit our factory and meet our quality control team.

Large Stamped Markings
Large Stamped Markings

Permanently roller stamp. Large on curved face of the socket.

Surface Treatment
Surface Treatment

From polish to mat, from dark to gray, and color also will be option for every product manager and designer.

Knurling, Groove, Color Ring
Knurling, Groove, Color Ring

Groove or Color Ring and knurled base section, giving the sockets distinctive appearance and handy feeling.

Material Quality
Material Quality

Tien-I is a member of China Steel Corporation (CSC), the leading steel company in Taiwan.
