Wobble Impact Extension Bar, CR-MO Impact Grade, Laser Etched

  • ANSI or DIN
  • Wobble Extension Bar offer enough angle to remove/tighten those stubborn nuts/bolts, where weird angles and tight spaces

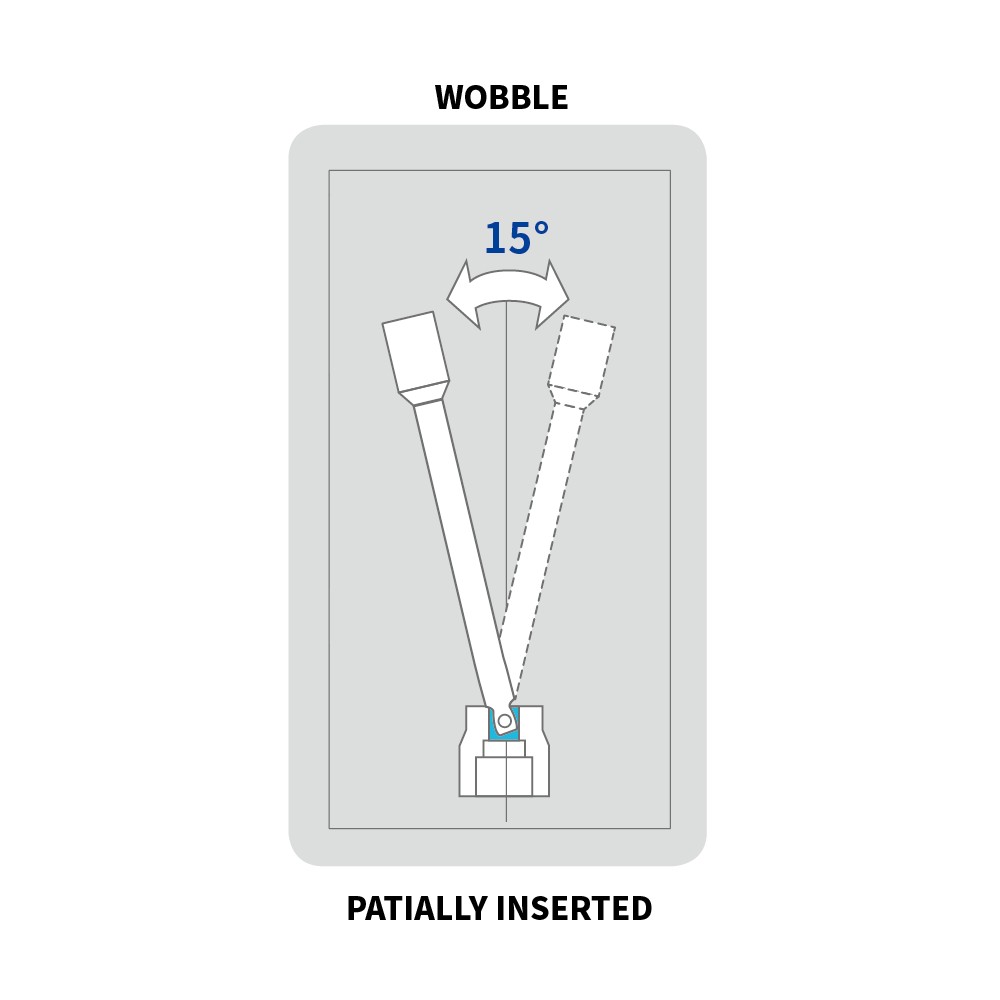

  • Two options for placing a socket on an wobbel extension:
1.) Press the socket on all the way for a typical rigid mating
2.) Wobble it by depressing the socket on the extension until it bottoms out and barely lifting it for "swivel" function
  • The special extra long length is avaiable.

  • Tien-i Impact Impact Extnesion bar made from forged and heat treated Chrome Molybdenum Steel (CR-MO SCM440), fully impact grade, to withstand high torque from air-powered impact drivers.
  • Manganese Black Phosphate coating to ensure rust & corrosion resistance in rough environments. Corrosion-resistant black phosphate finish (Manganese)
  • Meets or exceeds ANSI & DIN & ISO performance standards
  • Designed to tackle the toughest jobs with solid durability.

3/8" DR. WOBBLE IMPACT EXTIENSION BAR

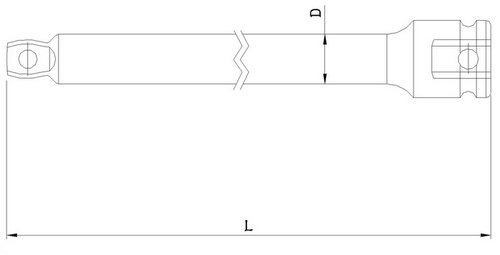

Item No. Length (inch) L (mm) D (mm) (g)
EIXW303 3" 75 12.2 76
EIXW305 5" 125 12.2 120
EIXW310 10" 250 12.2 233
EIXW315 15" 381 12.2 356

1/2" DR. WOBBLE IMPACT EXTIENSION BAR

Item No. Length (inch) L (mm) D (mm) (g)
EIXW403 3" 75 16.5 140
EIXW405 5" 125 16.5 223
EIXW410 10" 250 16.5 426
EIXW415 15" 381 16.5 612
Product Detail
High Torque Strength

High Torque Strength

Meets at least 1.2 times the ANSI test torque standard. Verified by a single cycle test in which torque is applied up to a specified value without failure or permanent deformation.

Standard

Standard

Each member of our quality control team has undergone SGS training to ensure that every Tlen-I product satisfies DIN, ISO and ANSI/ASTM international standards. Seeing is believing. We would like to invite you to visit our factory and meet our quality control team.

Laser & Stamped Marking
Laser & Stamped Marking

Marked with the size in 2 way - visible laser mark and permanent stamp mark.

Fully Stepped Shoulders
Fully Stepped Shoulders

Fully stepped shoulders allows better access to tight cavities.

Full-Length Socket Well
Full-Length Socket Well

The inner shaft extends well into the base for better fastener engagement.

Material Quality
Material Quality

Tien-I is a member of China Steel Corporation (CSC), the leading steel company in Taiwan.
