Impact Adaptor With Hex Shank

  • ANSI
  • Hex wall
      • Stubby 6 point impact sockets are ideal for use in tight spaces.
      • At only 22.5 mm (for 3/8” DR.), this stubby impact is the ideal tool for very restricted areas like transmission engine, and interior work.
      • Must have low-profile impact sdocket in every mechanics tool box for work in tight spaces that are unreachable with a standard impact socket.
      • Built to perform with Mini Impact Gun.
      • Hex shank drive end for Wrench 3/8"DR. with 17mm Hex Shank |   1/2"DR. with 22mm Hex Shank

    • Tien-i Impact Socket Made in Taiwan, from forged and heat treated CHROME MOLYBDENUM STEEL (CR-MO) with a corrosion-resistant black phosphate finish (MANGANIC PHOSPHATE FINISH)
    • Tien-i Impact Socket with High-torque, 6-point socket design grips the flat sides of fasteners, not just the corners, preventing round-off
    • Complete Sizes for SAE and Metric system
    • High-contrast permanent laser etched size markings are easy-to-read, even in low light
    • Tien-i Impact Socket meets or exceeds ANSI & DIN & ISO performance standards
      To know more: Differences between DIN and ANSI Specifications for Impact Sockets
INQUIRY NOW
Spec Size Chart
Download All Spec Size Chart

Impact Adaptor With Hex Shank

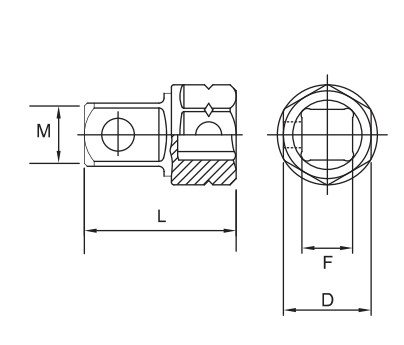

Item No. F(FEMALE) M(MALE) D(mm) L(mm) (g)
HIMADP202 1/4" 1/4" 11 20
HIMADP203 3/8" 1/4" 11 24
HIMADP204 1/2" 1/4" 11 28
HIMADP302 1/4" 3/8" 17 25
HIMADP303 3/8" 3/8" 17 26
HIMADP304 1/2" 3/8" 17 30
HIMADP306 3/4" 3/8" 17 36
HIMADP403 3/8" 1/2" 22 30
HIMADP406 3/4" 1/2" 22 42
HIMADP604 1/2" 3/4" 32 45
Product Detail
High Torque Strength

High Torque Strength

Meets at least 1.2 times the ANSI test torque standard. Verified by a single cycle test in which torque is applied up to a specified value without failure or permanent deformation.

Standard

Standard

Each member of our quality control team has undergone SGS training to ensure that every Tlen-I product satisfies DIN, ISO and ANSI/ASTM international standards. Seeing is believing. We would like to invite you to visit our factory and meet our quality control team.

Laser & Stamped Marking
Laser & Stamped Marking

Marked with the size in 2 way - visible laser mark and permanent stamp mark.

Fully Stepped Shoulders
Fully Stepped Shoulders

Fully stepped shoulders allows better access to tight cavities.

Full-Length Socket Well
Full-Length Socket Well

The inner shaft extends well into the base for better fastener engagement.

Material Quality
Material Quality

Tien-I is a member of China Steel Corporation (CSC), the leading steel company in Taiwan.

Contact Tien-i
Contact Tien-i

In order to purchase or customize products, and learn more information about your MOQ deal.
Contact Tien-i service center to start your purchase procedure.
