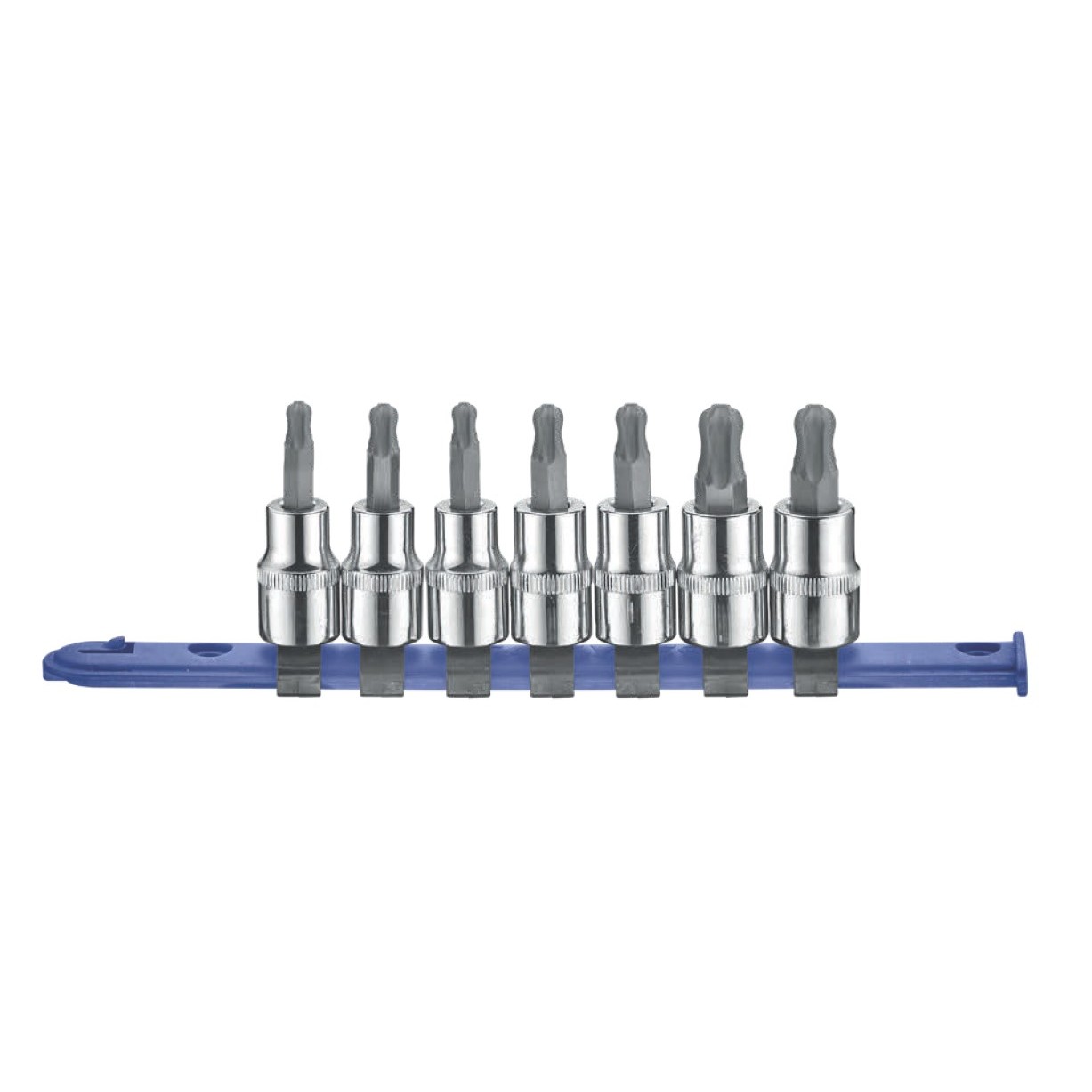

1/4"DR. BALL END STAR BIT SOCKET

  • ANSI or DIN
  • hex bit
Ball end design allows angled entry for improved access

Precision-machined star tip fits star hole fasteners securely

Made from heat-treated S2 steel and chrome vanadium socket body

Polished chrome finish for corrosion resistance
INQUIRY NOW

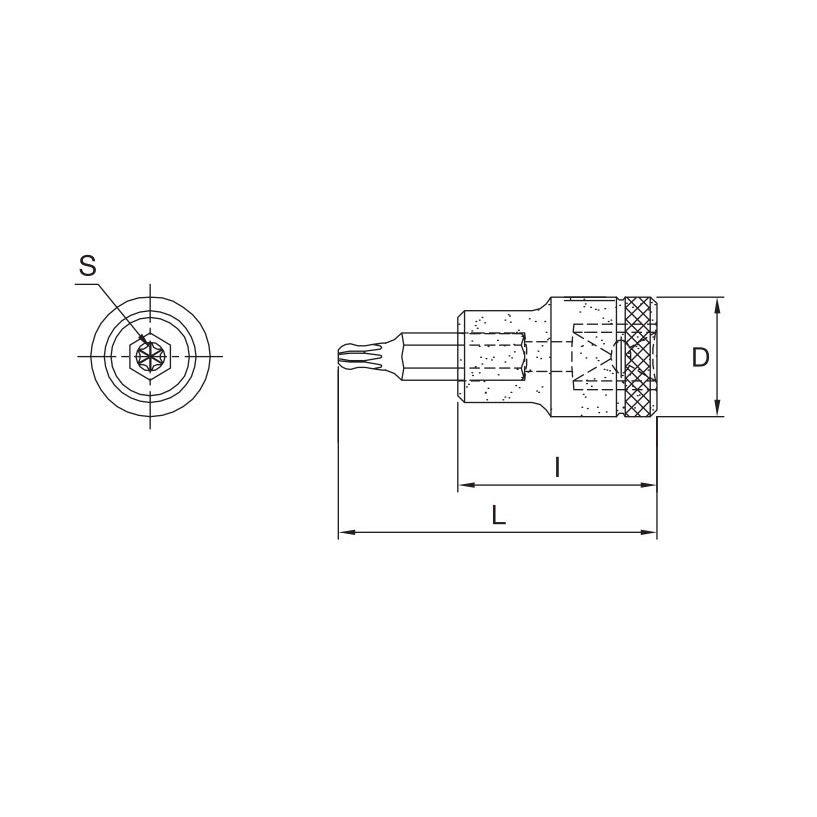

Spec Size Chart
Download All Spec Size Chart

1/4"DR. BALL END STAR BIT SOCKET

Item No. S L (mm) I (mm) D (mm) (g)
CBGEDBT23710 T10 37 22 11.8
CBGEDBT23715 T15 37 22 11.8
CBGEDBT23720 T20 37 22 11.8
CBGEDBT23725 T25 37 22 11.8
CBGEDBT23727 T27 37 22 11.8
CBGEDBT23730 T30 37 22 11.8
CBGEDBT23740 T40 37 22 11.8
Product Detail
High Torque Strength

High Torque Strength

Meets at least 1.2 times the ANSI test torque standard. Verified by a single cycle test in which torque is applied up to a specified value without failure or permanent deformation.

Standard

Standard

Each member of our quality control team has undergone SGS training to ensure that every Tlen-I product satisfies DIN, ISO and ANSI/ASTM international standards. Seeing is believing. We would like to invite you to visit our factory and meet our quality control team.

Large Stamped Markings
Large Stamped Markings

Permanently roller stamp. Large on curved face of the socket.

Surface Treatment
Surface Treatment

From polish to mat, from dark to gray, and color also will be option for every product manager and designer.

Knurling, Groove, Color Ring
Knurling, Groove, Color Ring

Groove or Color Ring and knurled base section, giving the sockets distinctive appearance and handy feeling.

Material Quality
Material Quality

Tien-I is a member of China Steel Corporation (CSC), the leading steel company in Taiwan.
