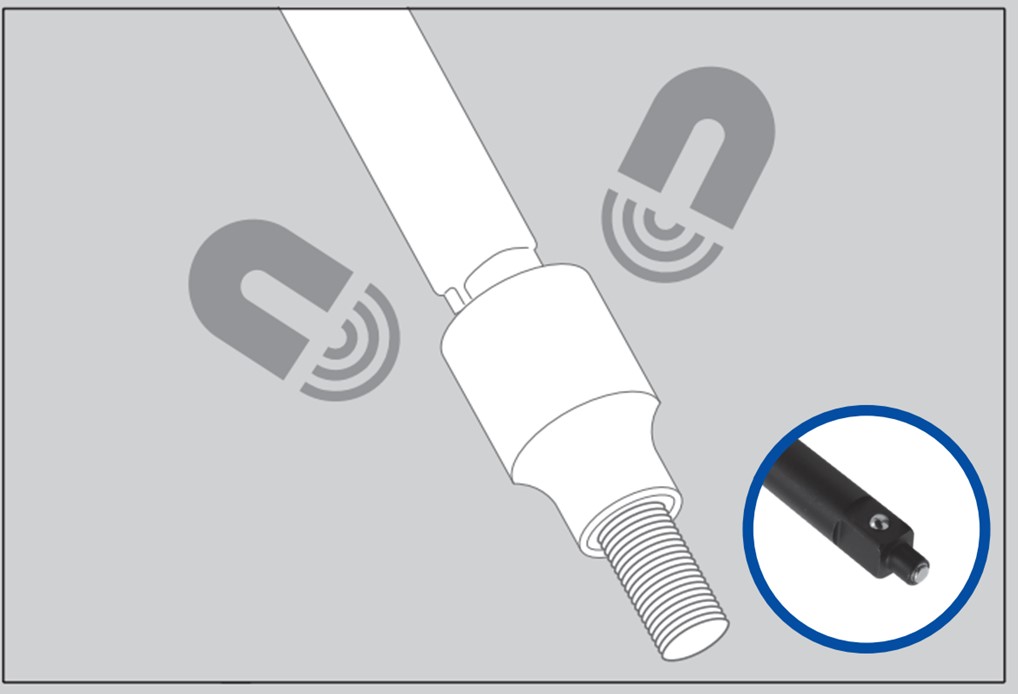

Magnet Impact Socket Extension, Magnetic Tips for Use with Bolts, CR-MO Impact Grade, Laser Etched

  • ANSI or DIN
  • Magnet Impact Socket Extension, Magnetic Tips for Use with Bolts, CR-MO Impact Grade, Laser Etched
  • The special extra long length is avaiable.



  • Tien-i Impact Impact Extnesion bar made from forged and heat treated Chrome Molybdenum Steel (CR-MO SCM440), fully impact grade, to withstand high torque from air-powered impact drivers.
  • Manganese Black Phosphate coating to ensure rust & corrosion resistance in rough environments. Corrosion-resistant black phosphate finish (Manganese)
  • Meets or exceeds ANSI & DIN & ISO performance standards
  • Designed to tackle the toughest jobs with solid durability.

3/8"DR. MAGNETIC IMPACT EXTENSION BAR

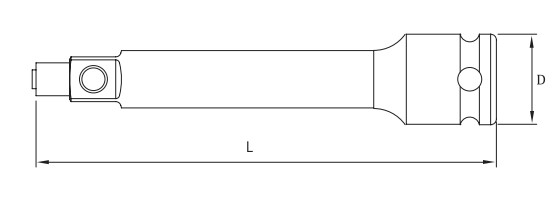

Item No. Length (inch) L (mm) D (mm) (g)
EIXM403 3" 75 19
EIXM405 5" 125 19
EIXM406 6" 150 19
EIXM410 10" 250 19
EIXM412 12" 305 19
EIXM415 15" 381 19
EIXM436 36" 914 19

1/2"DR. MAGNETIC IMPACT EXTENSION BAR

Item No. Length (inch) L (mm) D (mm) (g)
EIXM303 3" 75 25
EIXM305 5" 125 25
EIXM306 6" 150 25
EIXM310 10" 250 25
EIXM312 12" 305 25
EIXM315 15" 381 25
EIXM324 24" 610 25
EIXM336 36" 914 25
Product Detail
High Torque Strength

High Torque Strength

Meets at least 1.2 times the ANSI test torque standard. Verified by a single cycle test in which torque is applied up to a specified value without failure or permanent deformation.

Standard

Standard

Each member of our quality control team has undergone SGS training to ensure that every Tlen-I product satisfies DIN, ISO and ANSI/ASTM international standards. Seeing is believing. We would like to invite you to visit our factory and meet our quality control team.

Laser & Stamped Marking
Laser & Stamped Marking

Marked with the size in 2 way - visible laser mark and permanent stamp mark.

Fully Stepped Shoulders
Fully Stepped Shoulders

Fully stepped shoulders allows better access to tight cavities.

Full-Length Socket Well
Full-Length Socket Well

The inner shaft extends well into the base for better fastener engagement.

Material Quality
Material Quality

Tien-I is a member of China Steel Corporation (CSC), the leading steel company in Taiwan.
