1/4"DR. 12PT Magnetic Impact Universal Socket

  • ANSI or DIN
  • 1/4 inch
  • 12 POINT SOCKET
  • Swivel impact socket has 30-degree angle and rotates 360 degrees, allowing for access to tight spots.
  • Joint design increases strength and durability for high torque.
  • Full 360-degree rotation with spring-loaded ball bearing design ensures firm and secure grip.
  • Designed for use with battery, electric and pneumatic impact wrenches

  • Tien-i Impact Socket Made in Taiwan, from forged and heat treated CHROME MOLYBDENUM STEEL (CR-MO) with a corrosion-resistant black phosphate finish (MANGANIC PHOSPHATE FINISH)
  • Tien-i Impact Socket with High-torque, 6-point socket design grips the flat sides of fasteners, not just the corners, preventing round-off
  • Complete Sizes for SAE and Metric system
  • High-contrast permanent laser etched size markings are easy-to-read, even in low light
  • Tien-i Impact Socket meets or exceeds ANSI & DIN & ISO performance standards
    To know more: Differences between DIN and ANSI Specifications for Impact Sockets



INQUIRY NOW
Spec Size Chart
Download All Spec Size Chart

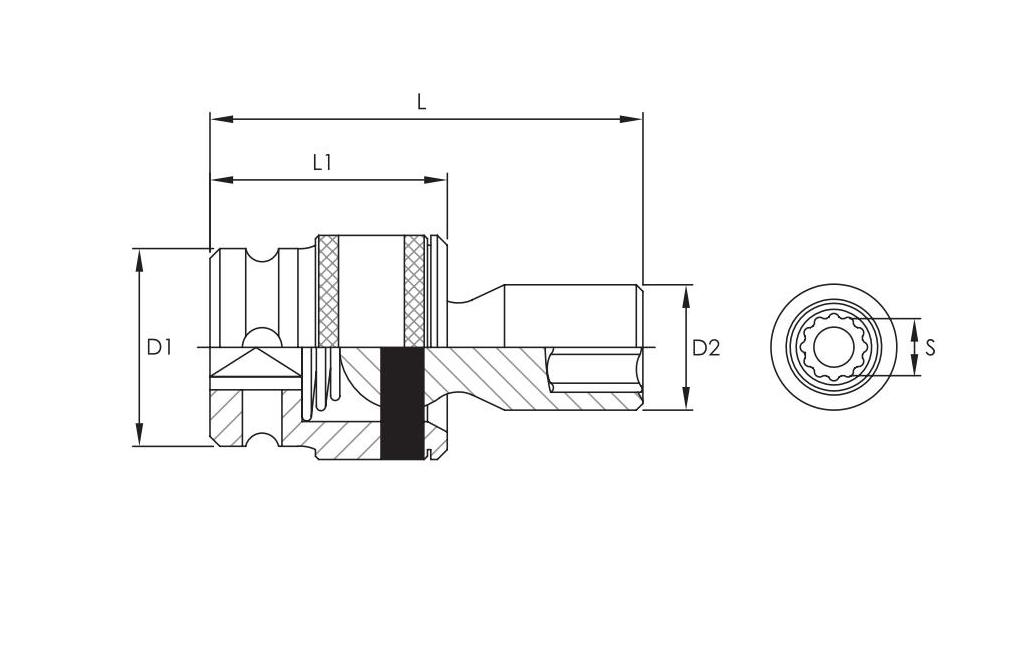

1/4"DR. 12PT MAGNETIC IMPACT UNIVERSAL SOCKET

Item No. S L L1 D1 D2 (g)
IUJKM26205 5 44 28 13 8.8
IUJKM26206 6 44 28 13 10
IUJKM26207 7 44 28 13 11.5
IUJKM26208 8 44 28 13 12.5
IUJKM26209 9 44 28 13 14
IUJKM26210 10 44 28 13 14.7
IUJKM26211 11 44 28 13 16.5
IUJKM26212 12 49 28 13 17.7
IUJKM26213 13 49 28 13 18.7
IUJKM26214 14 49 28 13 19.7
IUJKM26215 15 49 28 13 20.7
Product Detail
High Torque Strength

High Torque Strength

Meets at least 1.2 times the ANSI test torque standard. Verified by a single cycle test in which torque is applied up to a specified value without failure or permanent deformation.

Standard

Standard

Each member of our quality control team has undergone SGS training to ensure that every Tlen-I product satisfies DIN, ISO and ANSI/ASTM international standards. Seeing is believing. We would like to invite you to visit our factory and meet our quality control team.

Laser & Stamped Marking
Laser & Stamped Marking

Marked with the size in 2 way - visible laser mark and permanent stamp mark.

Fully Stepped Shoulders
Fully Stepped Shoulders

Fully stepped shoulders allows better access to tight cavities.

Full-Length Socket Well
Full-Length Socket Well

The inner shaft extends well into the base for better fastener engagement.

Material Quality
Material Quality

Tien-I is a member of China Steel Corporation (CSC), the leading steel company in Taiwan.

Contact Tien-i
Contact Tien-i

In order to purchase or customize products, and learn more information about your MOQ deal.
Contact Tien-i service center to start your purchase procedure.

INQUIRY NOW
Related Product
Hex Shape Stubby Star Impact Socket
Hex Shape Stubby Star Impact Socket
1/4" Drive Universal Impact Socket, 6 Point, 360 Degree Swivel, Flex Impact Socket
1/4" Drive Universal Impact Socket, 6 Point, 360 Degree Swivel, Flex Impact Socket
Impact Universal Extension Socket Set (L116)
Impact Universal Extension Socket Set (L116)

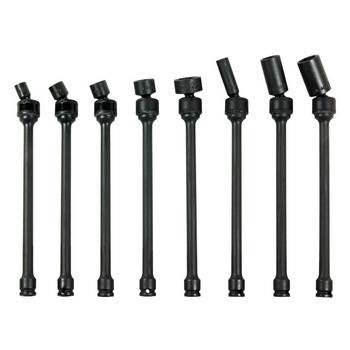

IMPACT UNIVERSAL EXTENSION SOCKET SET (L:250)
IMPACT UNIVERSAL EXTENSION SOCKET SET (L:250)

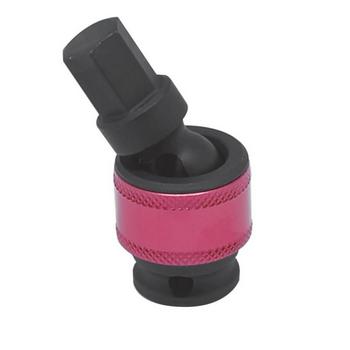

1/2"Dr. Universal Hex Bit Impact Socket
1/2"Dr. Universal Hex Bit Impact Socket
1/4" Drive 6-Point Impact Socket, SAE, Metric, American Standard
1/4" Drive 6-Point Impact Socket, SAE, Metric, American Standard
1/4" Drive 6-Point Impact Socket, SAE, Metric, European Standard
1/4" Drive 6-Point Impact Socket, SAE, Metric, European Standard
3/8" Drive 6-Point Impact Socket, SAE, Metric, American Standard
3/8" Drive 6-Point Impact Socket, SAE, Metric, American Standard
3/8" Drive 6-Point Impact Socket, SAE, Metric, European Standard
3/8" Drive 6-Point Impact Socket, SAE, Metric, European Standard
1/2" Drive 6-Point Impact Socket, SAE, Metric, American Standard
1/2" Drive 6-Point Impact Socket, SAE, Metric, American Standard
1/2" Drive 6-Point Impact Socket, SAE, Metric, European Standard
1/2" Drive 6-Point Impact Socket, SAE, Metric, European Standard
3/4" Drive Euro Type 6-Point Impact Socket, SAE, Metric
3/4" Drive Euro Type 6-Point Impact Socket, SAE, Metric
3/4" Drive Euro Type 6-Point Deep Impact Socket, SAE, Metric
3/4" Drive Euro Type 6-Point Deep Impact Socket, SAE, Metric
3/4" Drive USA Type 6-Point Impact Socket, SAE, Metric
3/4" Drive USA Type 6-Point Impact Socket, SAE, Metric
3/4" Drive USA Type 6-Point Deep Impact Socket, SAE, Metric
3/4" Drive USA Type 6-Point Deep Impact Socket, SAE, Metric
1" Drive European Standard, 6-Point Impact Socket, SAE, Metric
1" Drive European Standard, 6-Point Impact Socket, SAE, Metric
1" Drive European Standard, 6-Point Deep Impact Socket, SAE, Metric
1" Drive European Standard, 6-Point Deep Impact Socket, SAE, Metric
1" Drive American Standard, 6-Point Impact Socket, SAE, Metric
1" Drive American Standard, 6-Point Impact Socket, SAE, Metric
1" Drive American Standard, 6-Point Deep Impact Socket, SAE, Metric
1" Drive American Standard, 6-Point Deep Impact Socket, SAE, Metric
1-1/2" Drive 6-Point Impact Socket, SAE, Metric
1-1/2" Drive 6-Point Impact Socket, SAE, Metric
1-1/2" Drive 6-Point Deep Impact Socket, SAE, Metric
1-1/2" Drive 6-Point Deep Impact Socket, SAE, Metric
2-1/2" Drive 6-Point Impact Socket, SAE, Metric
2-1/2" Drive 6-Point Impact Socket, SAE, Metric
3-1/2" Drive 6-Point Impact Socket, SAE, Metric
3-1/2" Drive 6-Point Impact Socket, SAE, Metric
1/2" Drive 12-Point Impact Socket
1/2" Drive 12-Point Impact Socket
External Star Impact Socket, ANSI . USA Type , E-Star Impact Socket
External Star Impact Socket, ANSI . USA Type , E-Star Impact Socket
External Star Impact Socket , DIN ,Euro Type , E-Star Impact Socket
External Star Impact Socket , DIN ,Euro Type , E-Star Impact Socket
External Star Deep Impact Socket, E-Star Deep Impact Socket
External Star Deep Impact Socket, E-Star Deep Impact Socket
Deep Thin Wall Flip Impact Socket
Deep Thin Wall Flip Impact Socket
Extra Thin Wall Impact Socket
Extra Thin Wall Impact Socket
Deep Extra-thin Wall Flip Impact Socket
Deep Extra-thin Wall Flip Impact Socket
Extra Thin Wall Deep Impact Socket
Extra Thin Wall Deep Impact Socket
1"DR. Extra Thin Wall Deep Impact Socket
1"DR. Extra Thin Wall Deep Impact Socket
1" Drive Budd Wheel Impact Socket
1" Drive Budd Wheel Impact Socket
3/8" Drive. Low Profile Oil Filter Impact Socket, Oil Canister
3/8" Drive. Low Profile Oil Filter Impact Socket, Oil Canister
Low Profile Stubby Impact Socket With Hex Shank
Low Profile Stubby Impact Socket With Hex Shank
3/8" Drive Universal Impact Socket, 6 Point, 360 Degree Swivel, Flex Impact Socket
3/8" Drive Universal Impact Socket, 6 Point, 360 Degree Swivel, Flex Impact Socket
1/2" Drive, Hex (Allen) Bit Impact Socket, 2-Piece Design plus Screw Bit Holder (Replaceable)
1/2" Drive, Hex (Allen) Bit Impact Socket, 2-Piece Design plus Screw Bit Holder (Replaceable)
Impact Extension Bar, CR-MO Impact Grade, Laser Etched
Impact Extension Bar, CR-MO Impact Grade, Laser Etched
Wobble Impact Extension Bar, CR-MO Impact Grade, Laser Etched
Wobble Impact Extension Bar, CR-MO Impact Grade, Laser Etched
Magnet Impact Socket Extension, Magnetic Tips for Use with Bolts, CR-MO Impact Grade, Laser Etched
Magnet Impact Socket Extension, Magnetic Tips for Use with Bolts, CR-MO Impact Grade, Laser Etched
Spinning Handle Impact Extension Bar, Speed Collar, Cr-Mo Impact Grade
Spinning Handle Impact Extension Bar, Speed Collar, Cr-Mo Impact Grade
Adjustable Spinning Impact Extension Bar, Speed Collar, Adjustable 3-Position Aluminum Spinning Handle, Cr-Mo Impact Grade
Adjustable Spinning Impact Extension Bar, Speed Collar, Adjustable 3-Position Aluminum Spinning Handle, Cr-Mo Impact Grade
Impact Locking Extension Bar, CR-MO Impact Grade, Laser Etched
Impact Locking Extension Bar, CR-MO Impact Grade, Laser Etched
Impact Socket Adapter and Reducer, CR-MO Impact Grade, Laser Etched, Impact Driver & Wrench Conversion
Impact Socket Adapter and Reducer, CR-MO Impact Grade, Laser Etched, Impact Driver & Wrench Conversion
Oil Filter Impact Socket
Oil Filter Impact Socket
Wheel Protector Impact Socket
Wheel Protector Impact Socket
1/2"DR. Torque Limiting Impact Extension Bar Set, Large Color Ring
1/2"DR. Torque Limiting Impact Extension Bar Set, Large Color Ring
5pc Deep Combination Budd Impact Socket Set, Truck Service Impact Socket Set
5pc Deep Combination Budd Impact Socket Set, Truck Service Impact Socket Set
Magnetic Impact Socket
Magnetic Impact Socket
1/2" Drive Universal Impact Socket, 6 Point, 360 Degree Swivel, Flex Impact Socket
1/2" Drive Universal Impact Socket, 6 Point, 360 Degree Swivel, Flex Impact Socket
10 Piece Low-Profile Star Bit Socket Set 1/4" Drive Two Color (T10 - T50)
10 Piece Low-Profile Star Bit Socket Set 1/4" Drive Two Color (T10 - T50)

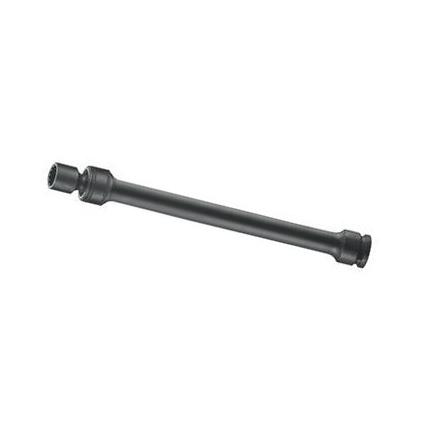

Universal Extension Impact Socket
Universal Extension Impact Socket

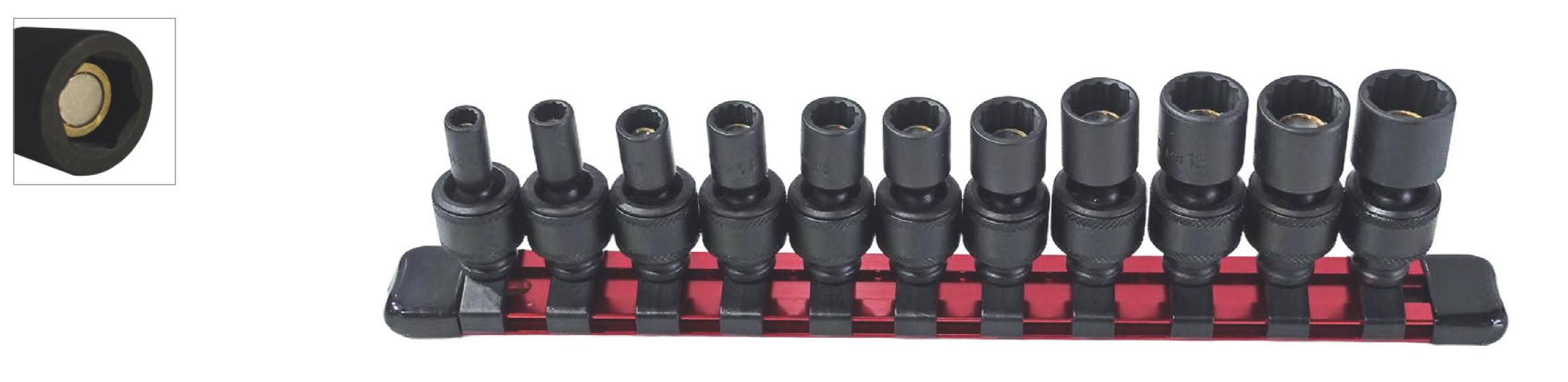

1/4"DR. 12PT MAGNETIC IMPACT UNIVERSAL SOCKET SET (MM)
