Hex Shape Stubby Star Impact Socket

  • ANSI
  • 6P socket
    • Stubby 6 point impact sockets are ideal for use in tight spaces.
      • At only 22.5 mm (for 3/8” DR.), this stubby impact is the ideal tool for very restricted areas like transmission engine, and interior work.
      • Must have low-profile impact sdocket in every mechanics tool box for work in tight spaces that are unreachable with a standard impact socket.
      • Built to perform with Mini Impact Gun.
      • Hex shank drive end for Wrench 1/4"DR. with 11mm Hex Shank |   3/8"DR. with 17mm Hex Shank |   1/2"DR. with 22mm Hex Shank

    • Tien-i Impact Socket Made in Taiwan, from forged and heat treated CHROME MOLYBDENUM STEEL (CR-MO) with a corrosion-resistant black phosphate finish (MANGANIC PHOSPHATE FINISH)
    • Tien-i Impact Socket with High-torque, 6-point socket design grips the flat sides of fasteners, not just the corners, preventing round-off
    • Complete Sizes for SAE and Metric system
    • High-contrast permanent laser etched size markings are easy-to-read, even in low light
    • Tien-i Impact Socket meets or exceeds ANSI & DIN & ISO performance standards
      To know more: Differences between DIN and ANSI Specifications for Impact Sockets
INQUIRY NOW

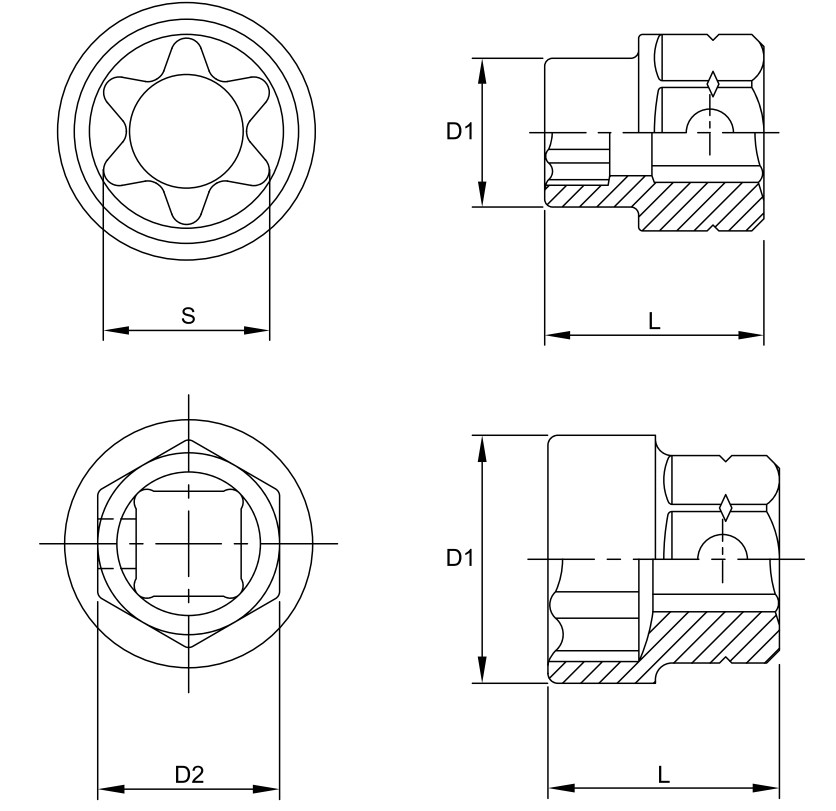

Spec Size Chart
Download All Spec Size Chart

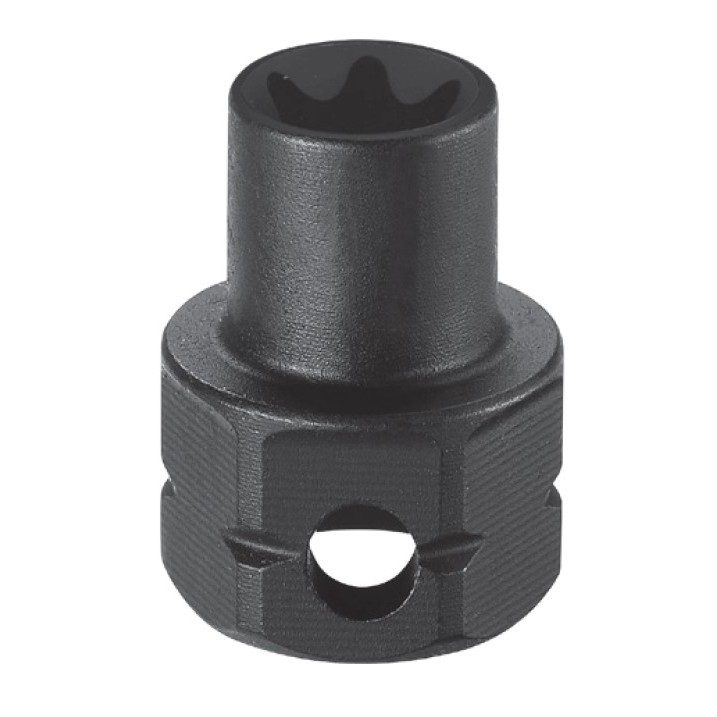

1/4"DR. HEX SHAPE STUBBY STAR IMPACT SOCKET

Item No. S L(mm) D1(mm) D2(mm) (g)
IESHMO26204 E4 10.5 6.4 11
IESHMO26205 E5 10.5 7.4 11
IESHMO26206 E6 10.5 8.4 11
IESHMO26207 E7 10.5 9.1 11
IESHMO26208 E8 10.5 10.4 11

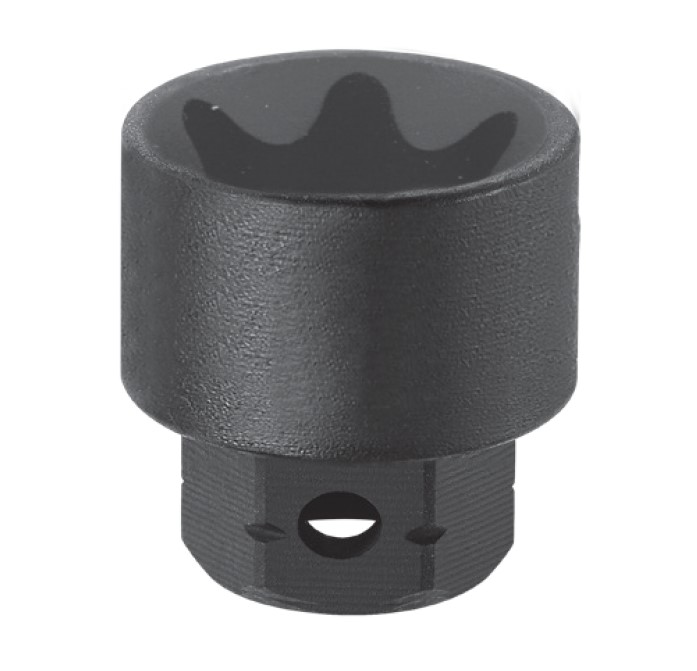

3/8"DR. HEX SHAPE STUBBY STAR IMPACT SOCKET

Item No. S L(mm) D1(mm) D2(mm) (g)
IESHMO36208 E8 27 11 17
IESHMO36210 E10 27 13 17
IESHMO36212 E12 27 15 17
IESHMO36214 E14 27 17 17
IESHMO36216 E16 27 19 17
IESHMO36218 E18 28.2 22 17
IESHMO36220 E20 29 24 17
IESHMO36222 E22 29 26 17
IESHMO36224 E24 29 28 17
Product Detail
High Torque Strength

High Torque Strength

Meets at least 1.2 times the ANSI test torque standard. Verified by a single cycle test in which torque is applied up to a specified value without failure or permanent deformation.

Standard

Standard

Each member of our quality control team has undergone SGS training to ensure that every Tlen-I product satisfies DIN, ISO and ANSI/ASTM international standards. Seeing is believing. We would like to invite you to visit our factory and meet our quality control team.

Laser & Stamped Marking
Laser & Stamped Marking

Marked with the size in 2 way - visible laser mark and permanent stamp mark.

Fully Stepped Shoulders
Fully Stepped Shoulders

Fully stepped shoulders allows better access to tight cavities.

Full-Length Socket Well
Full-Length Socket Well

The inner shaft extends well into the base for better fastener engagement.

Material Quality
Material Quality

Tien-I is a member of China Steel Corporation (CSC), the leading steel company in Taiwan.
