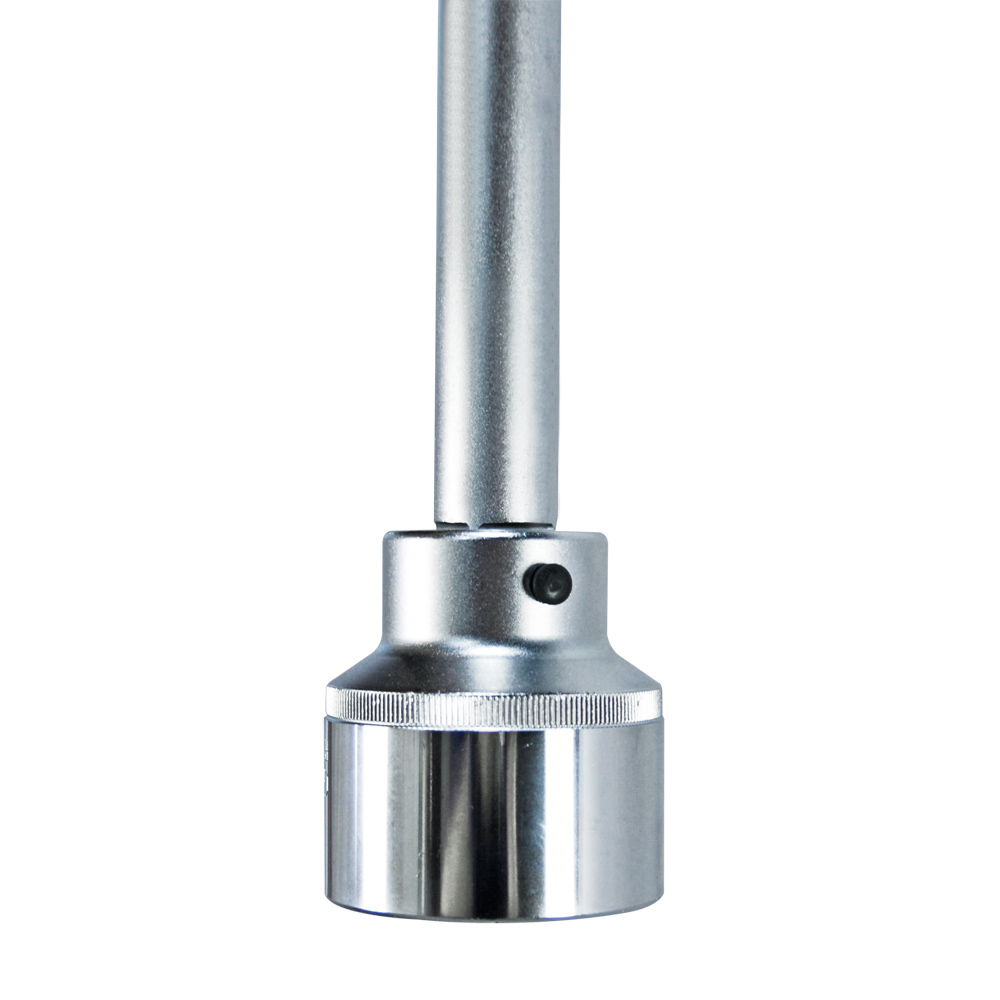

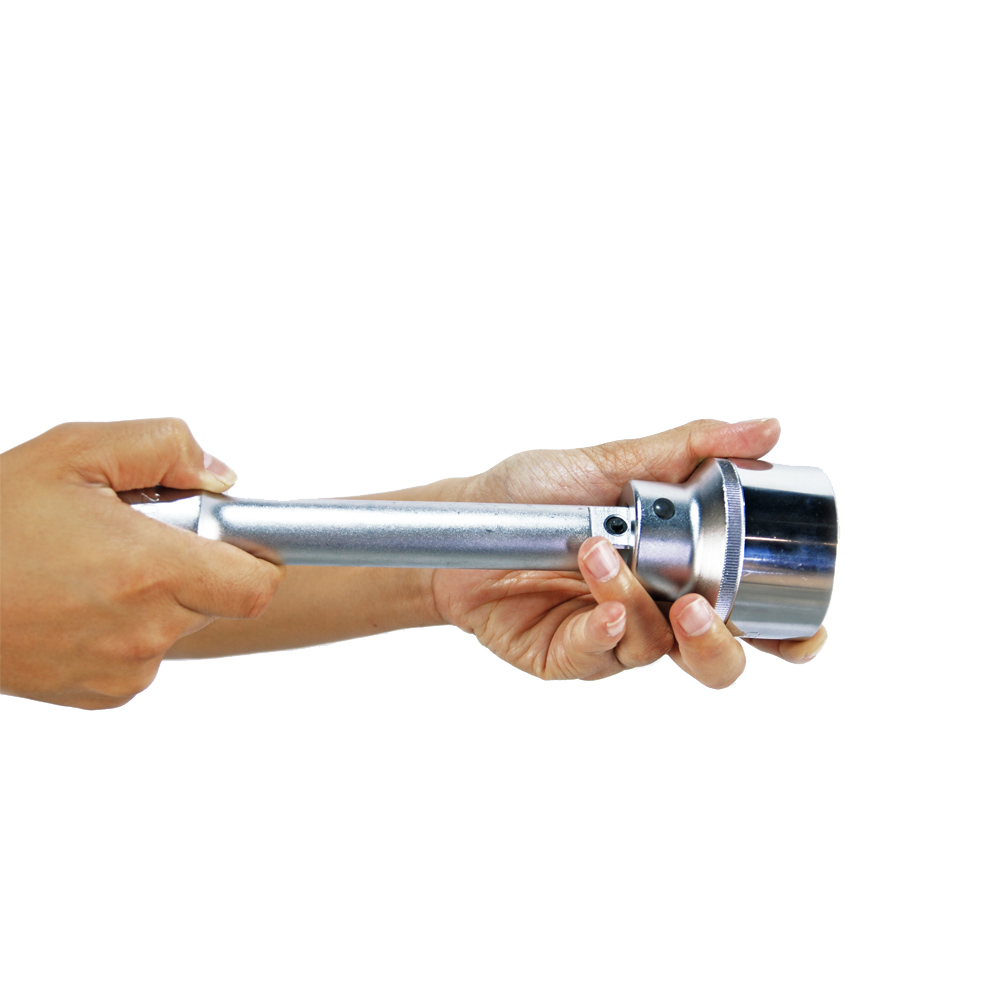

3/4 inch drive Socket with extension bar

Socket Set , Quality Socket Sets - Tien-I

3/4" Drive Socket, 6-Point, Sallow & Metric, SAE & Metric

Lock

Lock-funtion to prevent from socket falling accidently

Taiwan made Chrome Vanadium (CR-V) steel tempered with Tien-i proprietary heat treatment process to withstand more torque
Full Polish Nickel Chrome Finish ensures durability and corrosion resistance
Socket geometry design to grip flat sides of fastener head, not corners, preventing round-off
Complete Sizes for SAE and Metric
Meets or exceeds ANSI & DIN & ISO performance standard

INQUIRY NOW

Spec Size Chart

Download All Spec Size Chart

3/4 inch drive Socket

Item No.	S	L(mm)	D1(mm)	D2(mm)
CDDR66219	19	50	29	36
CDDR66221	21	50	31	36
CDDR66222	22	50	32	36
CDDR66224	24	52	34	36
CDDR66227	27	52	38	36
CDDR66228	28	52	38	36
CDDR66230	30	54	42	36
CDDR66232	32	56	44	36
CDDR66233	33	56	46	36
CDDR66234	34	56	46	36
CDDR66236	36	58	50	45
CDDR66238	38	60	52	45
CDDR66241	41	64	56	45
CDDR66246	46	68	62	45
CDDR66250	50	72	68	45
CDDR66255	55	76	74	45
CDDR66260	60	79	80	45

Product Detail

High Torque Strength

Meets at least 1.2 times the ANSI test torque standard. Verified by a single cycle test in which torque is applied up to a specified value without failure or permanent deformation.

Fully Stepped Shoulders

Fully stepped shoulders allows better access to tight cavities.

Large Stamped Markings

Permanently roller stamp. Large on curved face of the socket.

Surface Treatment

From polish to mat, from dark to gray, and color also will be option for every product manager and designer.

Knurling, Groove, Color Ring

Groove or Color Ring and knurled base section, giving the sockets distinctive appearance and handy feeling.

Material Quality

Tien-I is a member of China Steel Corporation (CSC), the leading steel company in Taiwan.

Contact Tien-i

In order to purchase or customize products, and learn more information about your MOQ deal.
Contact Tien-i service center to start your purchase procedure.

INQUIRY NOW

Ｑ＆Ａ

What is the popular size of chrome sockets?

Tien-I is a manufacoturer at professional designing tool kit and producing OEM/ODM products.

Is the bit head magnetic?

Please provide the sample or the photo for us reference to see which bits you ask for.

What is the popular size of impact sockets?

What kind of tool kit do you want? And what’s the sales territory? Different countries have different popular sizes. Welcome to send us an email for further discussion. .

What is the popular size of chrome sockets?

What kind of tool kit do you want? And what’s the sales territory? Different countries have different popular sizes. Welcome to send us an email for further discussion.

What is the difference between impact socket and chrome socket? Why is CR-V material not suitable at producing impact sockets?

Tien-i's hand sockets are made of Cr-V steel (CR-V).

Compared with the raw material "CR-V" for hand sockets, the raw material for pneumatic sockets, CR-MO, has stronger toughness, i.e. stronger shock resistance. Suitable for use with air and electric guns. CR-V steel (CR-V) has higher hardness, but in the need for shock-resistant use environment will lead to reduced service life.

to know more about hand socket and impact socket
